FM Stereo radio module – RDA5807M

Description FM Stereo radio module - RDA5807M

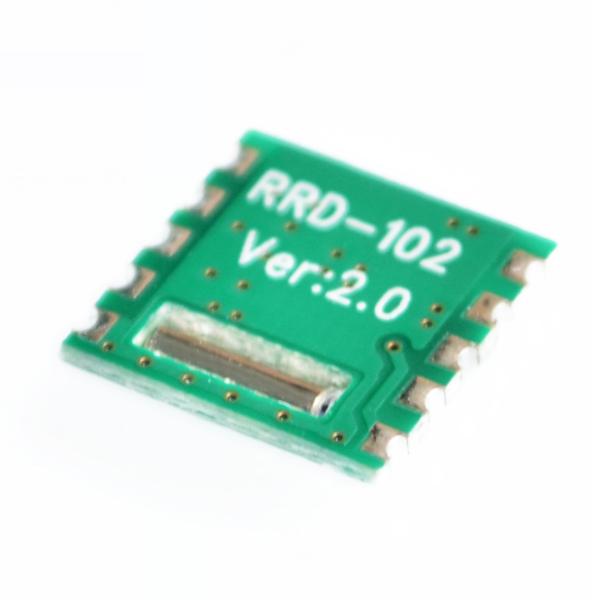

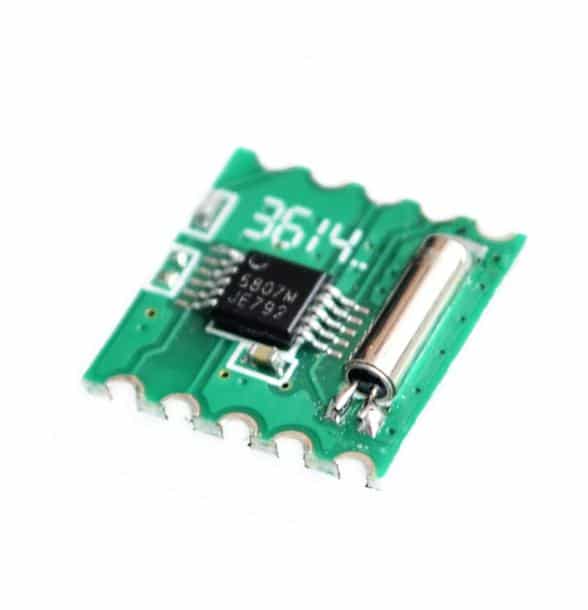

This is a stereo FM radio module. It works with an RDA5807M chip and has a high sensitivity. The module has a low power consumption and is very small in size. It is only 11 x 11 mm (lxw).

Features FM stereo radio module

• CMOS Single Chip Fully Integrated FM Tuner
• Low energy consumption
• Global frequency band support
• Support RDS / RBDs
• Digital Low If Tuner
• Image Rejection Down Converter
• High Quality A/D Converter
• If selectivity is performed internally
• Fully integrated digital frequency synthesizer
• Fully integrated on-chip RF and as VCO.
• Only support 2-wire bus interface
• Fully integrated on-chip loop filter
• Autonomous Search Tuning
• Support 32.768KHZ Crystal Oscillator
• Digital Auto Gain Control (AGC)
• Digital Adaptive Noise Cancellation
• MONO/STEREO SWITCH
• soft mute
• High cut
• Get Signal Strength Indicator (RSSI) and SNR
• bass boost
• Volume control and mute
• Line level analog output voltage
• Integrated LDO controller.

Specifications FM stereo radio module

• Input supply voltage: 2.7 ~ 3.3 v
• Output Impedance: 32
• Frequency band: 50 ~ 115MHz
• Size: 11,2 x 11,2 x 2mm
• Weight: 0,3 g
