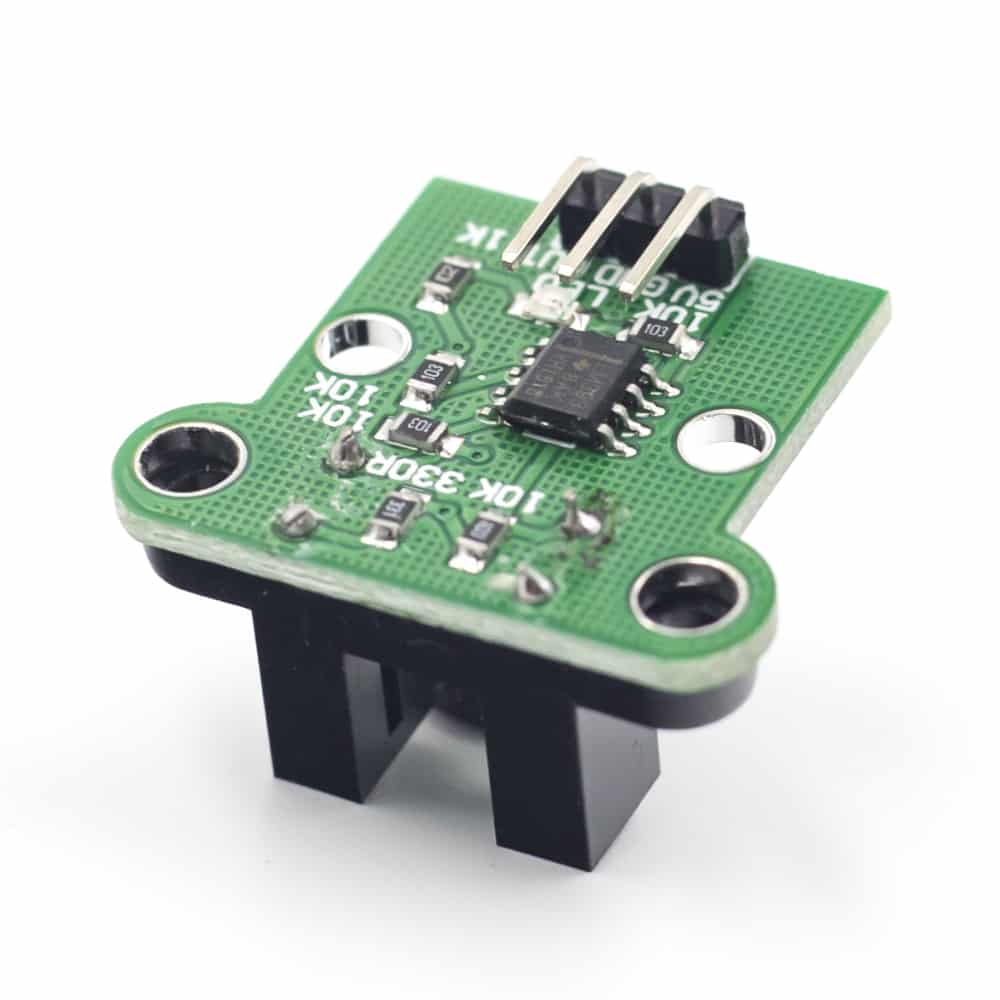

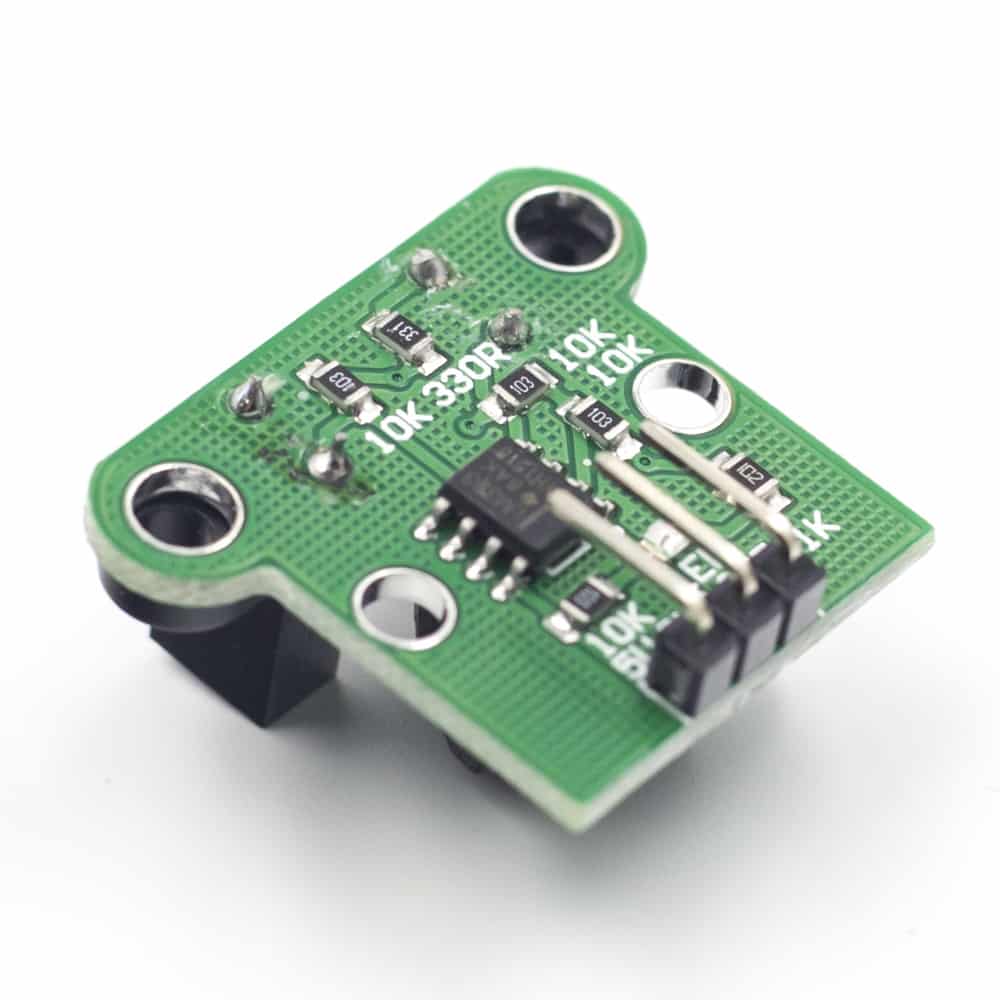

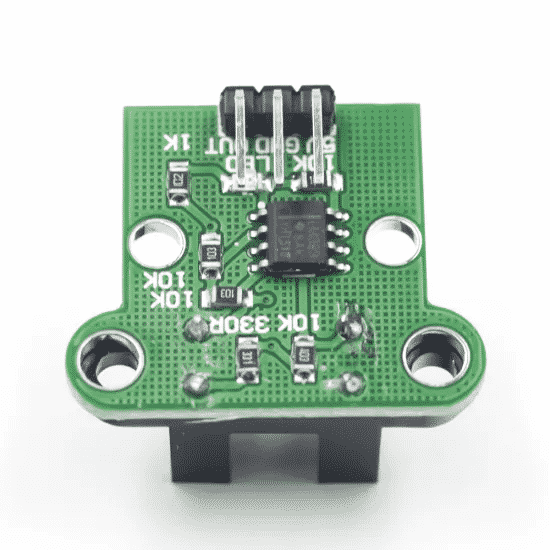

HC-020K speed encoder - 2 pcs

(1 customer review)

7,40 /7,40 excl. VAT

2 in stock

  • Free shipping from € 74,95 NL. (€ 99,95 BE / DE)
  • Ordered before 16:00 tomorrow Indoor
  • Express ordered before 11:00 am tonight at home*
  • 14 days free return *
  • Can also be collected from us in Leusden!
Item: SENSX NUMX Categories:

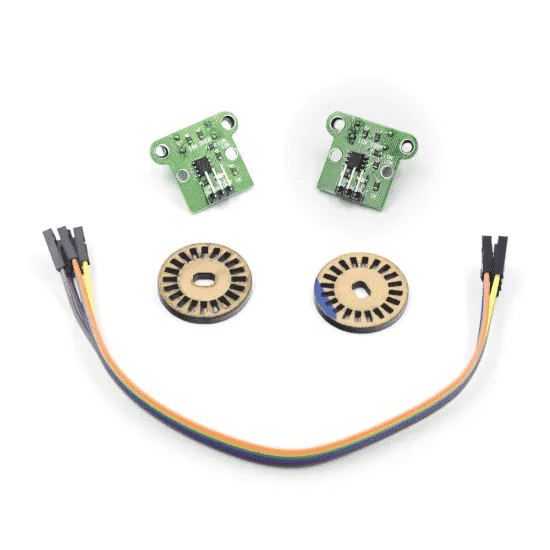

Description HC-020K speed encoder - 2 pcs

The HC-020K is a module that can perform measurements with high resolution and short response time. The modules measure the speed that the encoder wheels turn. This makes it possible to calculate the speed and determine the position of the wheels. The diameter of the hole for the axle is 4mm.

Specifications HC-020K speed encoder - 2 pcs

  • Working voltage: 4,5V to 5,5V.
  • Transfer pressure drop to tube: Vf = 1,6 V.
  • Transmitting tube current: 20 mA
  • Signal output: A, B bidirectional; The TTL level
  • Distinguish precision: 0,01mm
  • Measuring frequency, 100 KHZ
  • Encoder diameter: 24 mm
  • Diameter hole encoder type D: 4 mm
  • The encoder resolution: 20 line
  • Speed ​​sensor configuration: The configuration can measure 1 road engine speed
