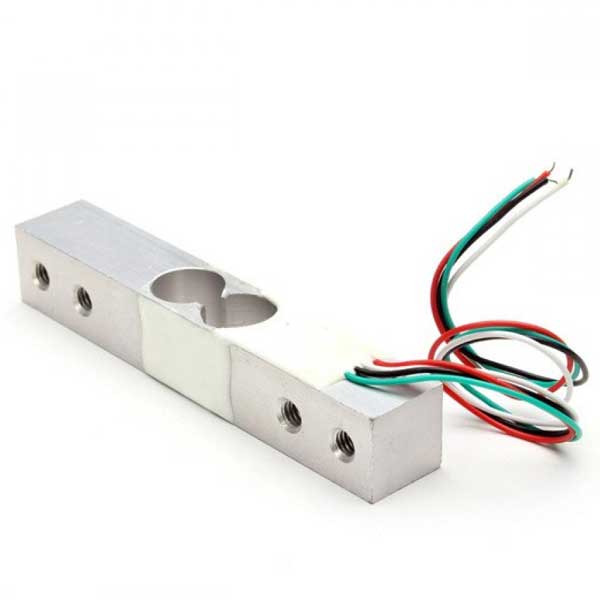

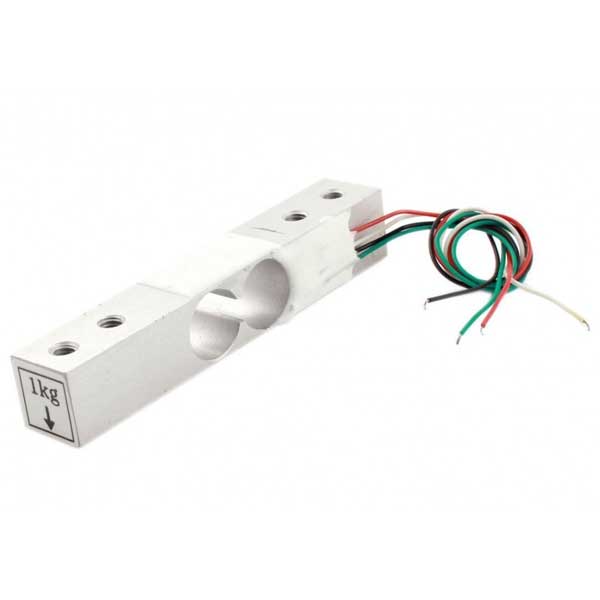

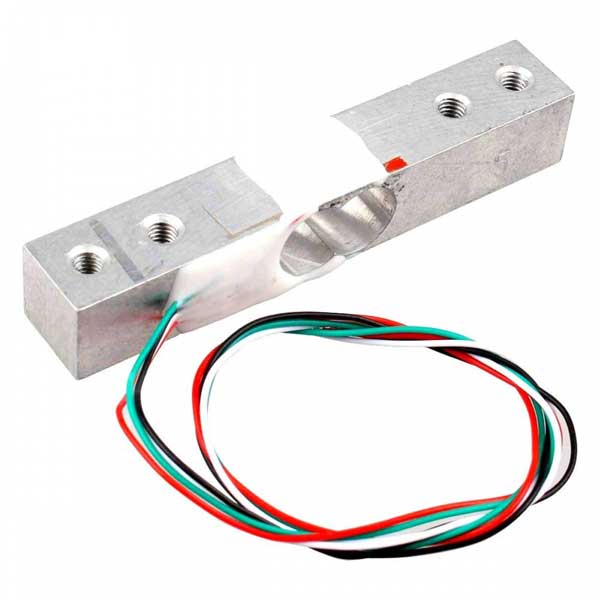

Load cell sensor YZC-131 – 1kg

4,09 /4,09 excl. VAT

Available via backorder

  • Free shipping from € 74,95 NL. (€ 99,95 BE / DE)
  • Ordered before 16:00 tomorrow Indoor
  • Express ordered before 11:00 am tonight at home*
  • 14 days free return *
  • Can also be collected from us in Leusden!
Item: SENSX NUMX categories: ,

Description Load cell sensor YZC-131 - 1kg

The Load Cell sensor 1kg is a standard load cell. It can be used to measure weights up to 1kg. The output of the load cell is in mini volts and cannot be measured directly by a micro controller. You can a HX711 Load Cell Amplifier to amplify the signal.

Specifications Load cell sensor YZC-131 - 1kg

  • Type: YZC-131
  • Material: Aluminum
  • Weighing range: 0~1kg
  • Rated Output: 1,0 ± 0.1MV/V
  • Nonlinear Output: ±0,03%FS
  • Input Impedance: 1066 ± 10% Ω
  • Output Impedance: 1000 ± 10%
  • Insulation resistance: 2000 MΩ
  • Hysteresis: 0,03%FS
  • Repeatability: 0,03%FS
  • Creep: (5 minutes) 0,05% FS
  • Zero Balance: ±0,1 MV/V
  • Cable length: 18 cm
  • Operating Temperature Range: -20~65°C
  • Dimensions in mm (LXWXH): 75 x 12,6 x 12.6
  • Weight: 26 g
