PIR motion sensor module - HC-SR501

4,76 /3,93 excl. VAT

23 in stock

  • Free shipping from € 74,95 NL. (€ 99,95 BE / DE)
  • Ordered before 16:00 tomorrow Indoor
  • Express ordered before 10:30 am tonight at home*
  • 14 days free return *
  • Can also be collected from us in Leusden!
Article number: SENSX NUMX Categories: , ,

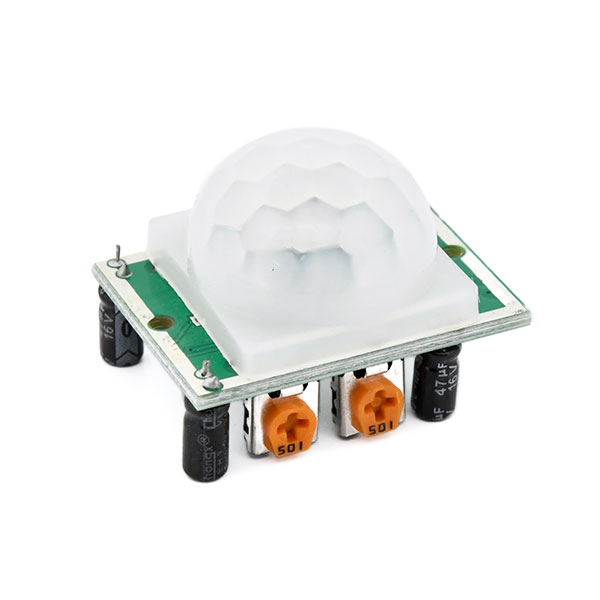

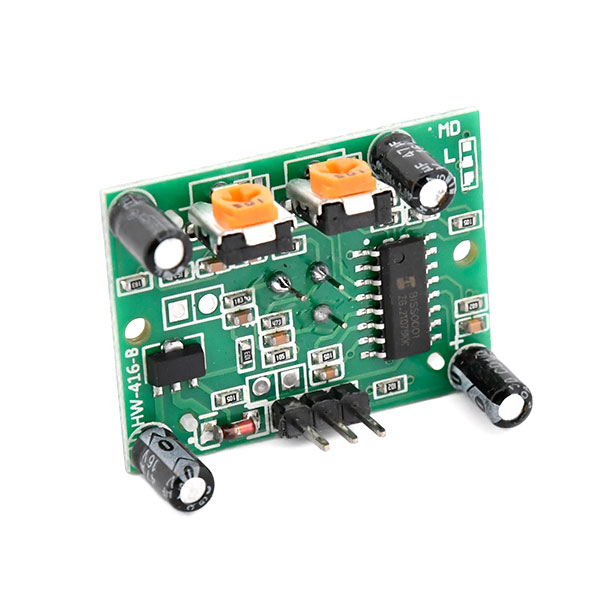

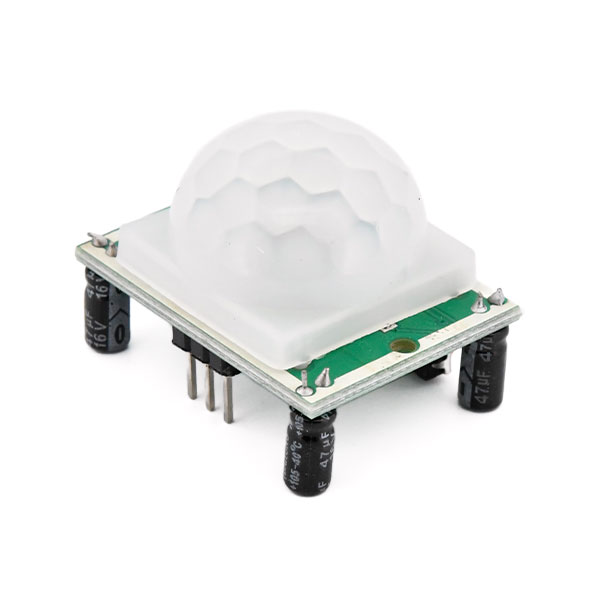

Description PIR motion sensor module - HC-SR501

The HC-SR501 PIR sensor can quickly detect movements. As soon as movement is detected, the sensor gives a 3.3V signal on the output pin. By connecting the output pin to a microcontroller board such as an Arduino you can create an autonomous project. The distance and delay to be measured can be set by means of the potentiometers on the sensor. PIR sensors are often used for lighting. The lamp only turns on when motion is detected. This eliminates the need for a wall switch. For example, it could also be used in interactive art.

Features HC-SR501 PIR Sensor

  • Input voltage: DC 5-12V
  • Static current: 65mA
  • Trigger: H-Yes, L-No.
  • Blocking time: 2,5 S (default)
  • Delay time: 5 S (default)
  • Detectable angle: <120 degrees
  • Sentry: 3 m (standard) - max. 6 m
  • Lens size: Diameter: 23 mm (standard)
  • Dimensions: 32 mm x 24 mm
