PoE Ethernet / USB HUB BOX for Raspberry Pi Zero

Description PoE Ethernet / USB HUB BOX for Raspberry Pi Zero

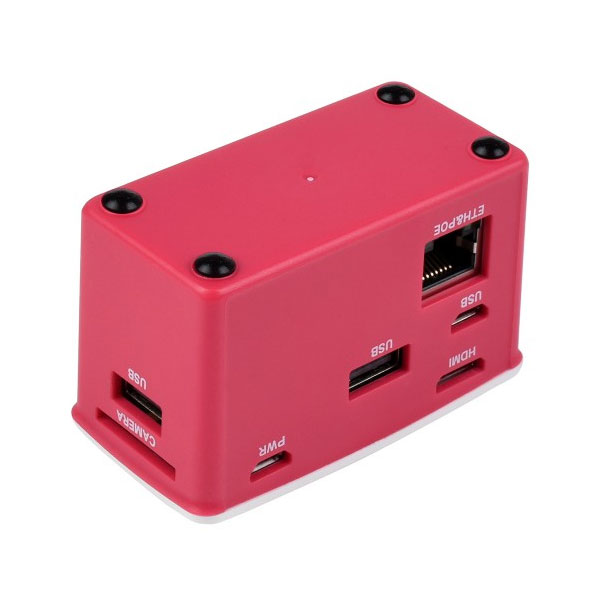

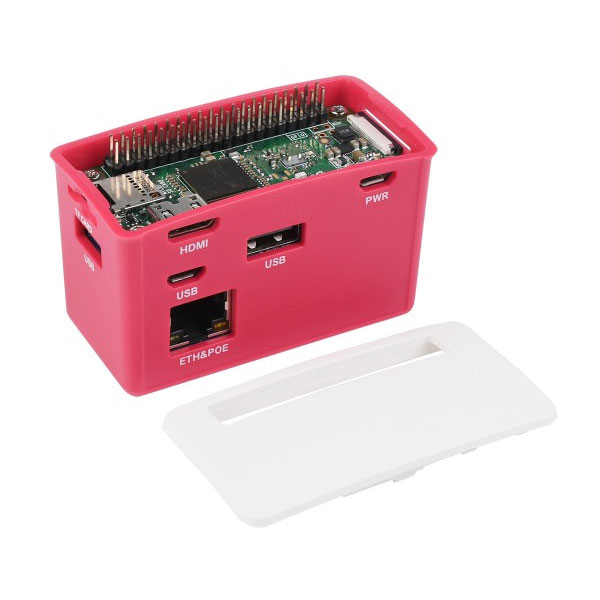

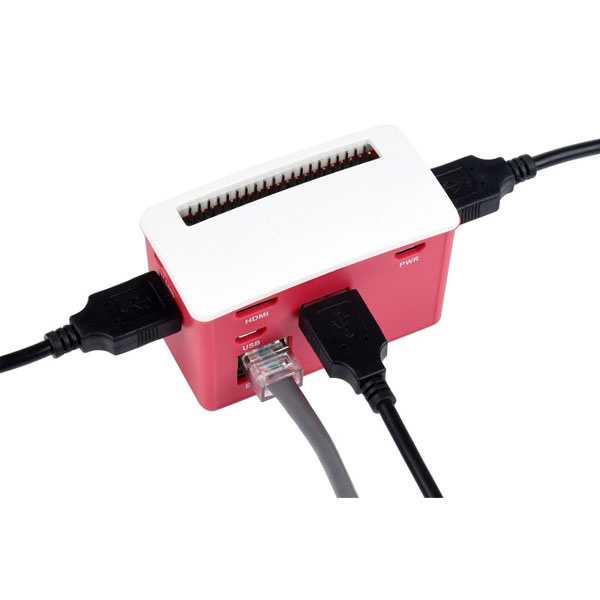

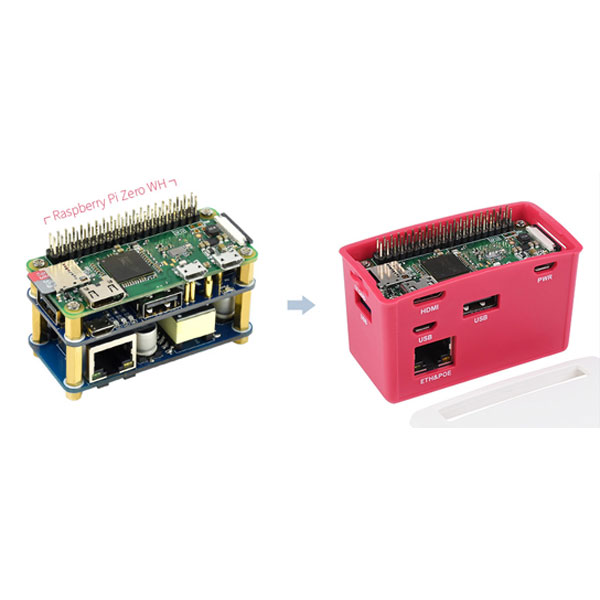

This is Waveshare's PoE ETH USB HUB BOX. It is a HUB kit with a PoE, ETH, USB HAT in it. It is tailor-made for the Raspberry Pi Zero boards† All recesses of the housing are aligned with the corresponding connectors. The housing has a classic Raspberry Pi Red/white color combination. The Raspberry Pi good protected from dust. When you connect the kit to a good 802.3af power supply, it is possible to get both network connection and power via one Ethernet cable..

Features PoE Ethernet / USB HUB BOX

• Designed for Raspberry Pi Zero, compatible with Zero series cards
• Includes RTL8152B Ethernet chip, with 10M/100M RJ45 port for auto-negotiation
• PoE (Power over Ethernet) function, 802.3af compliant
• Fully isolated SMPS (Switch Mode Power Supply)
• 3x extended USB ports, compatible with USB 2.0 / 1.1
• Corner rounded design, smooth hand feeling, "simple snap" case cover
• Quality ABS material, matte polishing surface, anti-fingerprint
• Comes with two different lids, changeable as you like

Specifications PoE Ethernet / USB HUB BOX

• PoE power input: 37V ~ 57V DC in
• Current output: 5V 2.5A DC output
• Network standard: IEEE 802.3af compliant PoE
• Dimensions: 72,80×37,50×45,80mm
• More information
