Z0107NA Triac – 800V 1A

0,44 /0,37 excl. VAT

100 in stock (can be backordered)

  • Free shipping from € 74,95 NL. (€ 99,95 BE / DE)
  • Ordered before 16:00 tomorrow at home
  • Express ordered before 11:30 am tonight at home*
  • 14 days free return *
  • Can also be collected from us in Leusden!
Item: TRAN3011 categories: ,

Description Z0107NA Triac - 800V 1A

This is a Z0107NA Triac. See the datasheet for more information.

Features Z0107NA Triac

  • Peak repetitive off-state voltage, VDRM: 800V
  • On State RMS CURRENT IT (RMS): 1A

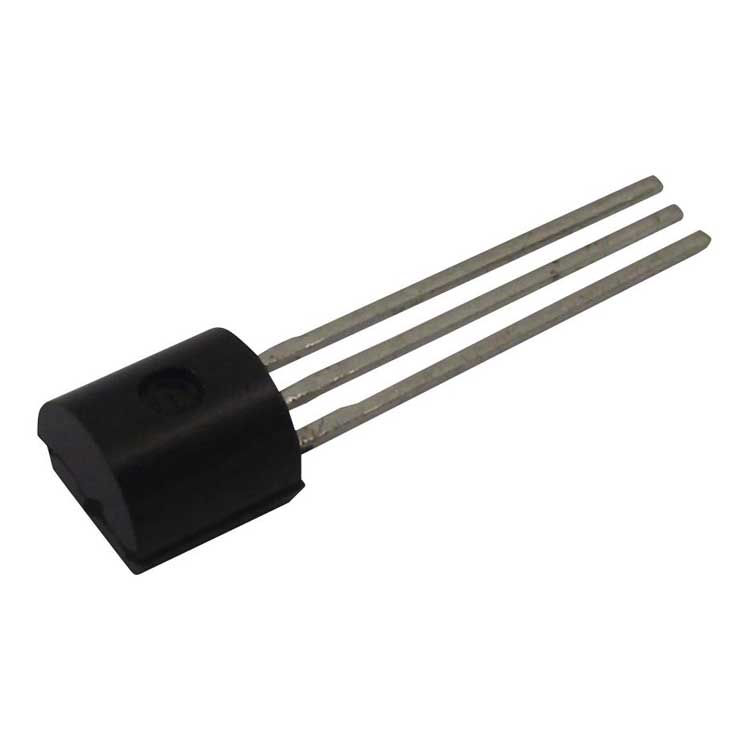

  • Triac Case Style: to-92
  • Gate Trigger Current Max (QI), IGT: 7MA
  • Gate Trigger Voltage Max VGT: 1,3 V
  • Peak Gate Power: 2W
  • Peak Non Rep Surge Current ItsM 50Hz: 8.5A
  • Hold current Max IH: 10mA
  • Number of pins: 3 pins
  • Operating temperature MAX: 125 ° C

Datasheet Z0107NA Triac

datasheet
