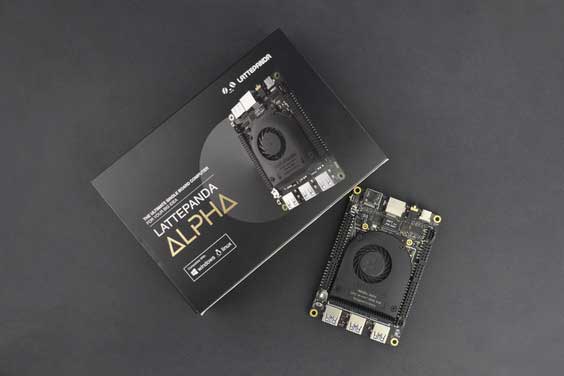

LattePanda Alpha 800s

- Due to Intel's capacity problems, the supply of Alpha's CPU M3-7y30 will face a continuous shortage. To solve the problem, LattePanda team updated its CPU to Intel 8th M3-8100y, correspondingly, Alpha 800 models will be upgraded to Alpha 800s. It will improve the whole performance 30% on the basis of previous 7th M3-7y30 version.

Alpha Edition - Generally refers to the leader in a wolf pack, α / Alpha. It will also be the leader in the LattePanda series, the most powerful in performance. Known as the leader of the Pandas, or "AlphaPanda" for short.

The Core m3 processor is the perfect choice for superior performance and low power consumption. We have shrunken this computing monster from a laptop to the size of a phone.

The Streaming Cable enables your Windows-enabled LattePanda device to act like a USB on a Mac or Linux system. Just plug & play into your Apple/Linux device! The PiP (Picture in Picture) form also eliminates the switching/use of dual mouse and HDMI to connect different systems for seamless interaction of two different systems.



• Solid Spec and Extreme Design
• Dual OS Support – Windows / Linux Both
• Ultimate Networking on Cloud and Things
• Up to 42 Extendable Interfaces bring Rich Playabilities
• Ultra-Thin Design, Minimizing Space Occupation
• Rebuild How to Code Efficiently with Multiple OS

• CPU：Intel 8th m3--8100y
• Core：1.1-3.4GHz Dual-Core，Four-Thread
• Benchmark (PassMark): Up to 4128, double computing power compared with same price range products in the market
• Graphics：Intel HD Graphics 615, 300-900MHz
• RAM：8G LPDDR3
• External Memory：

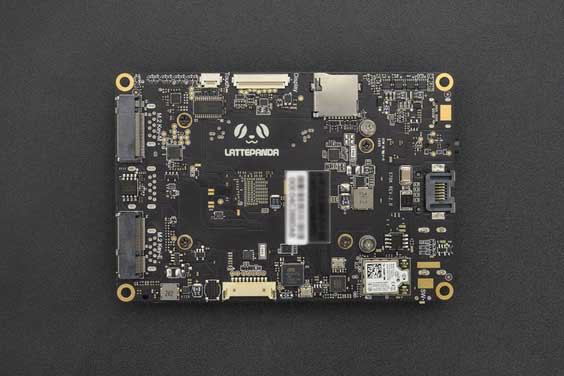

  1x M.2 M Key, PCIe 4x, Supports NVMe SSD and SATA SSD
  1x M.2 E Key, PCIe 2x，Supports USB2.0, UART, PCM
• Connectivity：
  WIFI 802.11 AC, 2.4G & 5G
  Dual Band Bluetooth 4.2
  Gigabit Ethernet
• USB Ports：
  3x USB 3.0 Type A
  1x USB Type C, supports PD, DP, USB 3.0
• Display：
  HDMI Output
  Type-C DP Support
  Extendable eDP touch displays
• Co-processor：Arduino Leonardo
• GPIO & Other Features：2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC，Power Management，Extendable power button，everything you need
• OS Support：
  Windows 10 Pro
  Linux Ubuntu

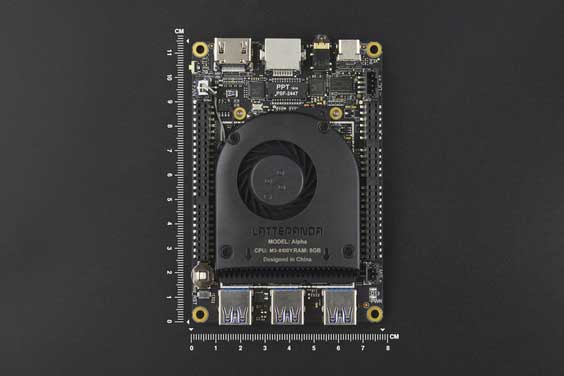

• Dimension: 115mm * 78mm * 14 mm

• LattePanda Website
• Certifications

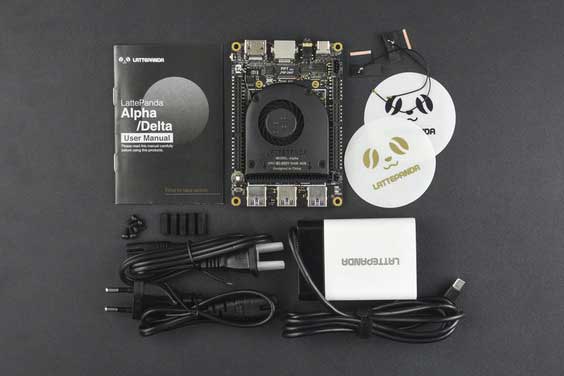

• LattePanda Alpha 800s  x1
• Free Gift - Active cooling fan x1
• Free Gift - 45w PD Power adapter x1
