Turtle 2WD

69.99

4 op voorraad (kan nabesteld worden)

Artikelnummer: ROBO1105 Categorieën: , ,

Beschrijving

The 2WD Mobile Robot Platform for Arduino is a small, low-cost mobile platform for use with a standard Arduino microcontroller. The robot comes as a kit which includes two drive motors, wheels (and rear caster ball), frame and all mounting hardware. The main structure and mechanical parts for a robot. This DFRobot mobile robot platform is widely used as self-developed control chasis for Arduino platforms and other control boards. This kit features the following: two differential drives, near zero turning radius, high-strength aluminum alloy body material, motors and a flexible rubber wheel makes it suitable for indoor flat road surface and flat-platform robot completitions. The top layer includes a standard servo socket and the three optional sensor holder. This three sensor holder fits with our adjustable IR range sensor. The servo can be used for a simple rotation platform, a two degrees of freedom camera holder or even a robotic arm.

SPECIFICATION

  • 2WD Arduino mobile robot development platform
  • Low-cost Arduino microcontroller mobile platform
  • Two differential drive
  • Caster ball included
  • Complete chassis with mounting hardware
  • Dimensions: 170mm (6.69 in) diameter base
  • Weight: 445g
  • Further motor specifications on the product page (FIT0016 TT Geared Motor with Back Shaft)

DOCUMENTS

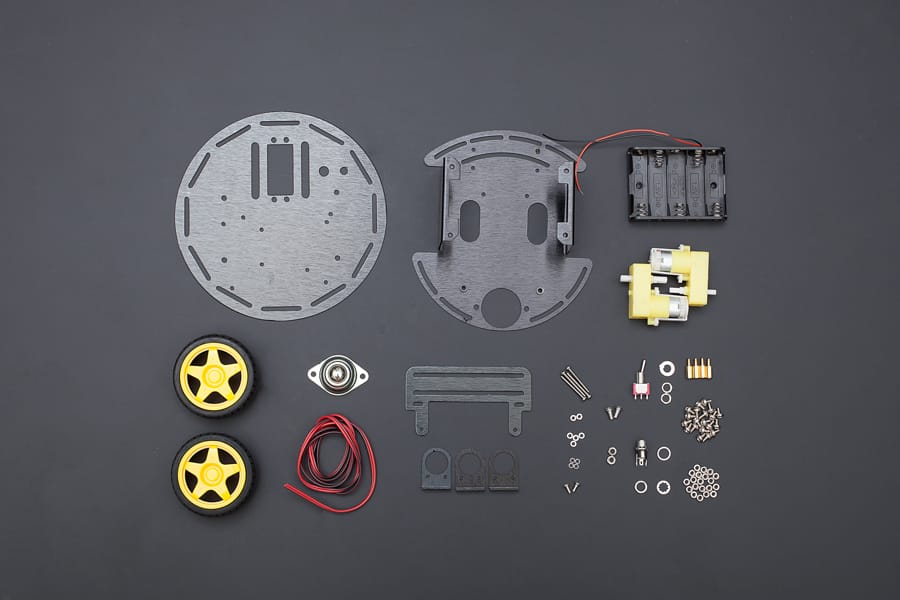

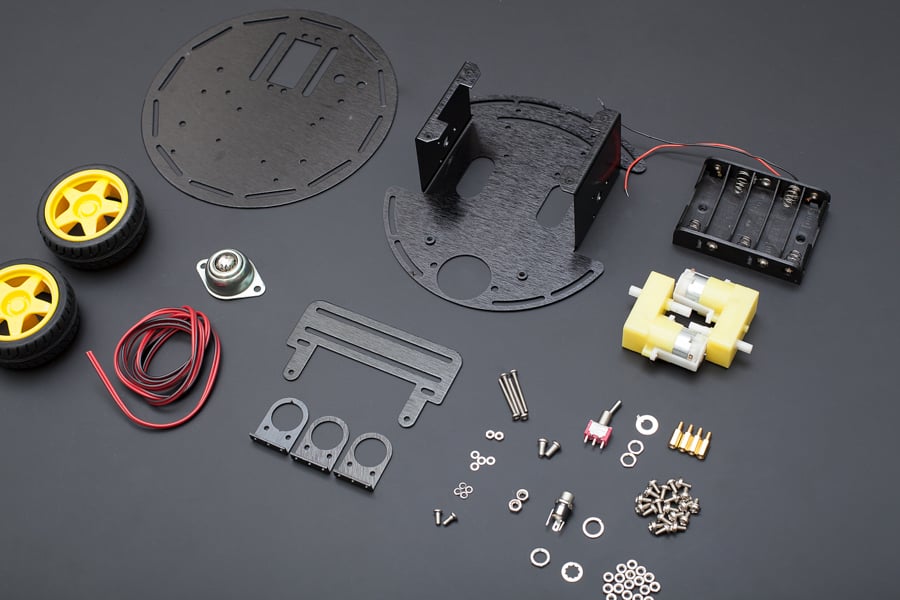

SHIPPING LIST

  • Rubber Wheel (FIT0003) x2
  • Micro DC Geared Motor (FIT0016) x2
  • Chassis x1
