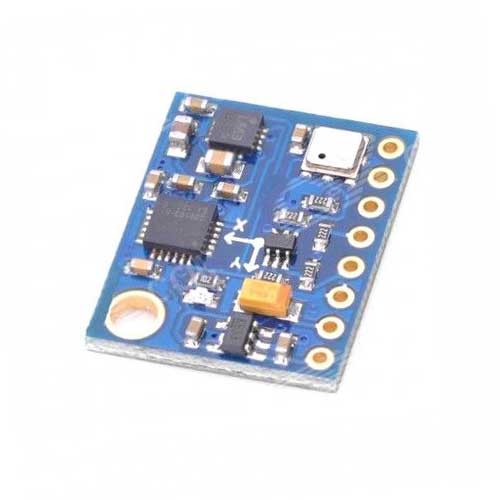

10DOF MPU6050 HMC5883L BMP085 GY-87 – Separate headers
€19,95 /€16,49 excl. VAT
1 in stock (can be backordered)
- Free shipping from € 74,95 NL. (€ 99,95 BE / DE)
- Ordered before 16:00 tomorrow Indoor
- Express ordered before 10:30 am tonight at home*
- 14 days free return *
- Can also be collected from us in Leusden!
Description 10DOF MPU6050 HMC5883L BMP085 GY-87 - Loose headers
This is a small but very comprehensive sensor.
The built-in MPU-6050 is a: 3-axis gyroscope, 3-axis accelerometer.
The built-in HMC5883L is for measuring a 3-axis magnetic field.
With the built-in BMP180 you can measure barometric pressure.
The module operates on a voltage of 3V to 5V. The pin headers are supplied separately with this module. So you have to solder it yourself.
Specifications 10DOF MPU6050 sensor
- Chip: MPU-605
- 10DOF
- MPU 6050: 3-Axis Gyroscope & 3-Axis Accelerometer
- HMC5883L: 3 axis magnetic field
- BMP180: barometric pressure sensor
- Voltage: 3.3 - 5V
- Gyro Range: ± 250, 500, 1000, 2000 ° / s
- Gear range: ± 2 ± 4 ± 8 ± 16 g
- HMC5883L range: ± 1.3-8 Gauss.
