Description Adafruit NeoKey Trinkey - USB NeoPixel Mechanical Button
This is the NeoKey Trinkey from Adafruit. It's half USB and half Trinket. This module comes with a Trinket M0 as the brain, a NeoPixel glow and is Cherry MX compatible. The Neo Trinkey is based on single-key macro pads, but this is a simple variant that easily fits into your USB port.

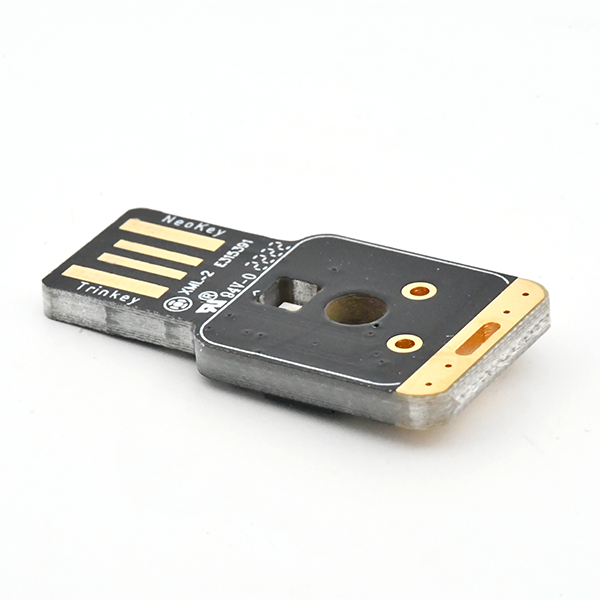

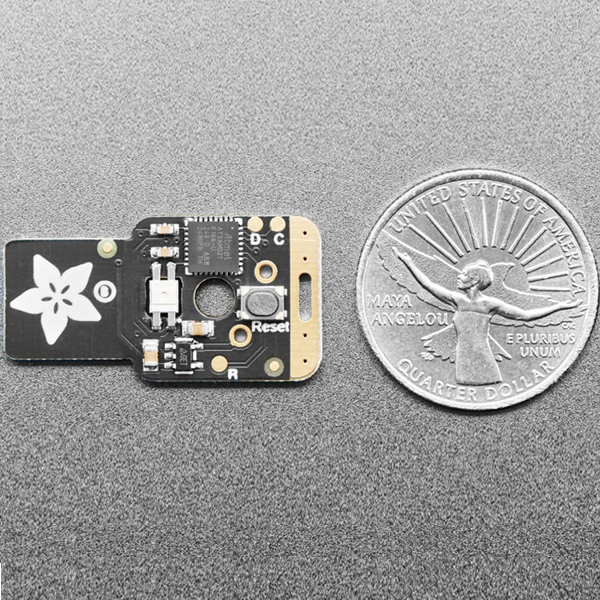

The PCB is designed to fit into any USB-A port. There is an ATSAMD21 microcontroller on board and one pin is connected to a Cherry MX compatible switch. Another pin is connected to a NeoPixel LED. The third pin can be used as a capacitive touch input. There is also a small reset button on it board to enter bootloader mode.
The SAMD21 works on both CircuitPython and Arduino. And thanks to the NeoPixel and FreeTouch libraries, it is extra easy to program.

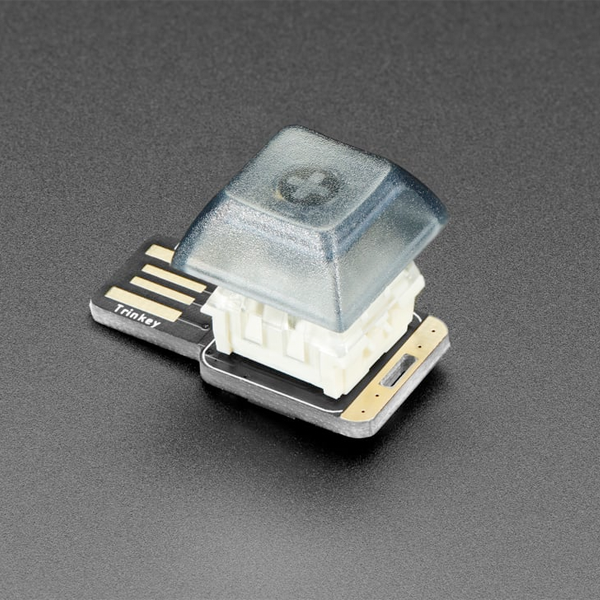

Keep an eye on! The module does not come with a soldered button. You can choose your favorite MX compatible button and solder it on the module.
Features Adafruit NeoKey Trinkey
-
ATSAMD21E18 32-bit Cortex M0+ - 48 MHz 32-bit processor with 256KB Flash and 32 KB RAM
-
Built-in USB support for any operating system - usable in Arduino or CircuitPython as USB serial console, MIDI, Keyboard/Mouse HID, and even a small drive for storing Python scripts
-
Can be used with Arduino IDE or CircuitPython
-
Single reverse mounted RGB NeoPixel LED
-
One capacitive touch pad
-
Footprint compatible with Cherry-MX, usable for almost any mechanical switch. Please note we only have a hole in the center. If your switch has two small side studs, these will need to be cut off
-
Reset button to restart your project code or enter bootloader mode
-
Charming & perfect for a keychain!
-
Product dimensions: 32,0mm x 16,4mm x 3,3mm
-
Product weight: 2,1g
