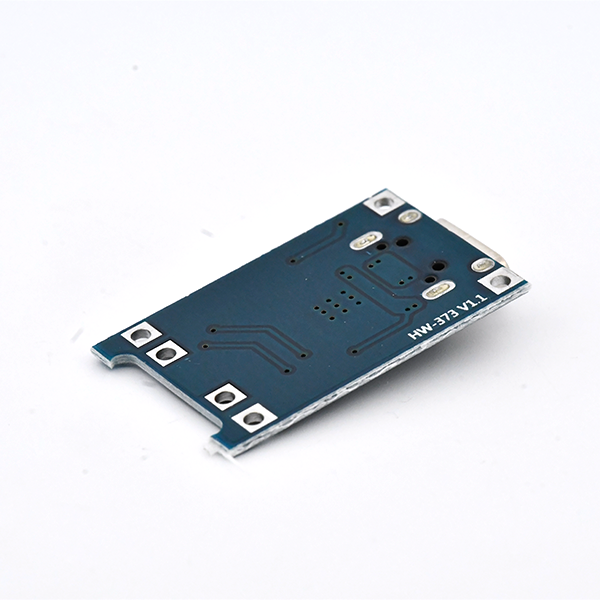

Li-ion Battery Charging Module
€2,45 /€2,02 excl. VAT
5 in stock
- Free shipping from € 74,95 NL. (€ 99,95 BE / DE)
- Ordered before 16:00 tomorrow Indoor
- Express ordered before 10:30 am tonight at home*
- 14 days free return *
- Can also be collected from us in Leusden!
BDescription Li-ion Battery Charging Module
The Li-ion Battery Charging Module is a compact electronic module designed for charging and discharging Li-ion rechargeable batteries. This module provides a reliable and easy way to charge a Li-ion rechargeable battery. With a maximum charging current of 1A, it can quickly and efficiently transfer energy to the battery. The module operates in constant current/constant voltage mode. Where the charging current is initially constant and then switches to constant voltage when the battery reaches the maximum voltage of 4.2V. The battery is protected against damage due to overcharging the battery. This is because the module is equipped with built-in security functions. The overcharging protection ensures that the charging voltage does not exceed 4.3V. While the over-discharge protection prevents the battery voltage from dropping below the safe limit of 2.5V. In addition, overcurrent protection protects the module and battery from damage due to abnormal current levels. The module is compatible with various Li-ion rechargeable batteries. The Charging module is powered by a DC 5V power source with a minimum current of 1A. With its compact dimensions of 30x18x5mm, the Charging module is easy to integrate into various electronic projects.
Features Li-ion Battery Charging Module
-
Charging current: maximum 1A
-
Charging voltage: 4.2V
-
Operating mode: constant current/constant voltage with automatic switching
-
Overcharging protection: 4.3V
-
Over-discharge protection: 2.5V
-
Overcurrent protection: 3A
-
Compatible batteries: 3.6V/3.7V Li-ion rechargeable batteries such as 18650, 26650 and others
-
Charging status indicator: YES, 2pcs LED
-
Power supply: DC 5V, minimum 1A
-
Power connector: USB Type-C and solder terminals
-
Dimensions (LxWxH): 30x18x5mm
- Type: TP4056 TC4056
Additional information
| Weight | 0,002 kg |
|---|
