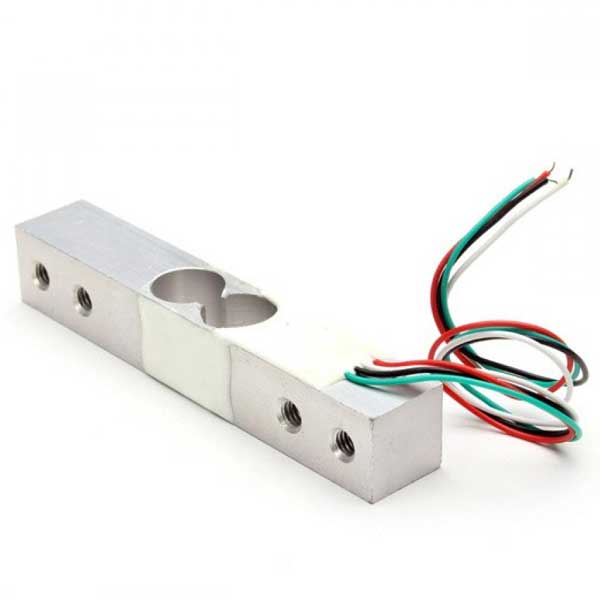

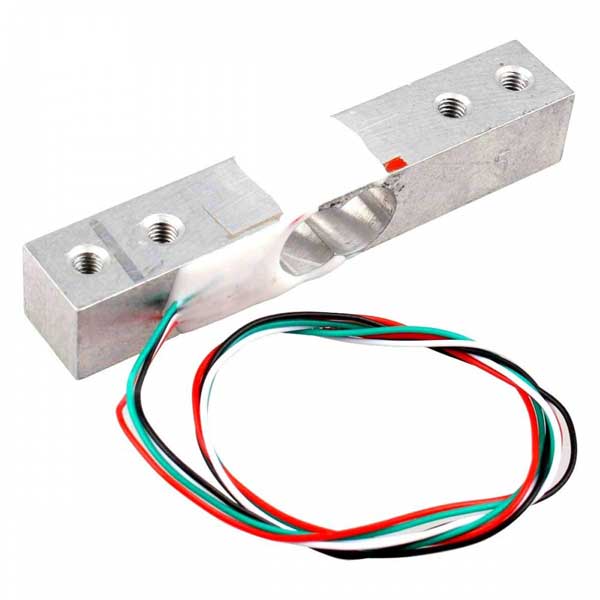

Load cell sensor YZC-133 – 10kg
€6,95 /€5,74 excl. VAT
8 in stock
- Free shipping from € 74,95 NL. (€ 99,95 BE / DE)
- Ordered before 16:00 tomorrow Indoor
- Express ordered before 10:30 am tonight at home*
- 14 days free return *
- Can also be collected from us in Leusden!
Description Load cell sensor YZC-133 - 10kg
The Load Cell sensor 10kg is a standard load cell. It can be used to measure weights up to 1kg. The output of the load cell is in mini volts and cannot be measured directly by a micro controller. You can a HX711 Load Cell Amplifier to amplify the signal.
Specifications Load cell sensor YZC-133 - 10kg
- Type: YZC-133
- Material: Aluminum
- Weighing range: 0~10kg
- Rated Output: 1,0 ± 0.1MV/V
- Nonlinear Output: ±0,03%FS
- Input Impedance: 1066 ± 10% Ω
- Output Impedance: 1000 ± 10%
- Insulation resistance: 2000 MΩ
- Hysteresis: 0,03%FS
- Repeatability: 0,03%FS
- Creep: (5 minutes) 0,05% FS
- Zero Balance: ±0,1 MV/V
- Cable length: 26 cm
- Operating Temperature Range: -20~60°C
- Dimensions in mm (LXWXH): 80 x 12.7 x 12.7
- Weight: 27 g
