reTerminal CM4104032 – With CM4 & 5inch Touch Screen – 4GB RAM
€239,96 /€198,31 excl. VAT
3 in stock
- Free shipping from € 74,95 NL. (€ 99,95 BE / DE)
- Ordered before 16:00 tomorrow Indoor
- Express ordered before 10:30 am tonight at home*
- 14 days free return *
- Can also be collected from us in Leusden!
Description reTerminal CM4104032 - With CM4 & 5inch Touch Screen - 4GB RAM
This is the reTerminal CM4104032 from Seeed Studio. It's a high end singleboard computer. It is powered by a Raspberry Pi Compute Module 4 (CM4), a Quad-Core Cortex-A72 running at 1,5GHz† It also features a 5-inch IPS capacitive 720x1280 multi-touch screen. The reTerminal has 4GB of RAM. This allows you to multitask excellently. There is a 32GGB eMMC storage to install an operating system. It has wireless connectivity with dual-band 2,4GHz/5GHz Wi-Fi and Bluetooth 5.0 BLE.
The reTerminal CM4104032 provides multiple I/O for expansion. The device has security features such as a cryptographic co-processor with secure hardware-based key storage.
Built-in there are modules such as an accelerometer, light sensor and an RTC (Real-Time Clock). If WiFi is not fast enough, you can also use the Gigabit Ethernet port. On the 40 pin Raspberry Pi compatible header allows you to connect various HATs and accessories† This makes it ideal for IoT applications, among other things.
The reTerminal CM4104032 comes standard with Raspberry Pi BONE. So all you have to do is plug it in and you can start building your IoT, HMI and Edge AI applications right away.!
Features Wio Terminal
- Integrated modular design with high stability and expandability
- Driven by Raspberry Pi Compute Module 4 (CM4) with 4GB RAM & 32GB eMMC
- 5-inch IPS capacitive multi-touch display with 1280 x 720 and 293 PPI
- Wireless connectivity with dual-band 2,4GHz/5GHz Wi-Fi and Bluetooth 5.0 BLE
- Fast expansion interface and rich I/O for more expandability
- Cryptographic co-processor with secure hardware-based key storage
- Built-in modules such as accelerometer, light sensor and RTC

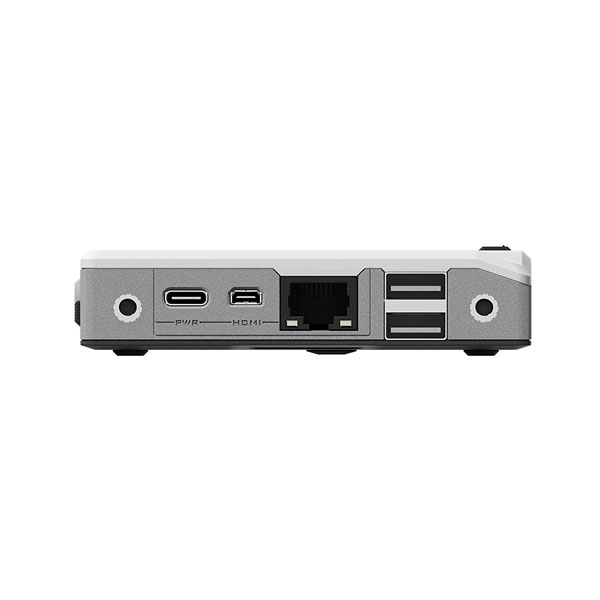

- Gigabit Ethernet port and dual USB 2.0 Type-A ports
- Pre-installed heatsink for higher performance

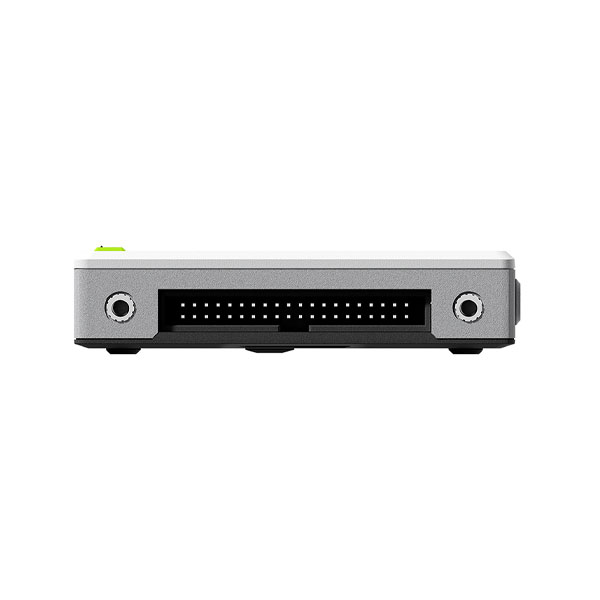

- 40-pin Raspberry Pi-compatible header for IoT applications
- reTerminal is Microsoft Azure certified
- Support for remote management of partner Mender.io (OTA software updates, configure, troubleshoot, remote terminal access)
- Best Raspberry Pidevice with a 5-inch multi-touch screen
- Powerful Raspberry Pi CM4 tablet
Specifications Wio Terminal
| Specification | Details | |
|---|---|---|
| Platform | Processor | Broadcom BCM2711 quad core Cortex-A72 (ARM v8) |
| Frequency | 64-bit SoC @ 1.5GHz | |
| Memory | Capacity | 4GB |
| Technology | LPDDR4 with on-die ECC | |
| eMMC | Capacity | 32GB |
| wireless | Wi-Fi | 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac |
| Bluetooth | Bluetooth 5.0, BLE | |
| Display | LCD | 5-inch 720x1280 LCD |
| Touch Panel | Capacitive touch panel (support multi-touch) | |
| Video | HDMI | 1 x Micro HDMI output (up to 4Kp60 supported) |
| CSI | 1 x 2-lane MIPI CSI camera interface | |
| Multimedia | H.265 (4Kp60 decode) | |
| H.264 (1080p60 decode,1080p30 encode) | ||
| OpenGL ES 3.0 graphics | ||
| Built-In Modules | Real Time Clock | NXP Semiconductors PCF8563T |
| low backup current; typical 0.25μA at VDD = 3.0 V and Temperature = 25 | ||
| Accelerometer | STMicroelectronics LIS3DHTR | |
| 16-bit, ±2g/±4g/±8g/±16g dynamically selectable full scale | ||
| Encryption | Microchip ATECC608A | |
| Secure Hardware-Based Key Storage, Asymmetric Sign, Verify, Key Agreement | ||
| Light Sensor | Levelek LTR-303ALS-01 | |
| digital light sensor | ||
| Internal IO Expansion |
Microchip MCP23008-E | |
| Buzzer | ≥85dB @10cm 2700±300Hz | |
| External I / O | in GPIOs | Up to 5×UART |
| Up to 5 × I2C | ||
| Up to 5 × SPI | ||
| 1 × SDIO interface | ||
| 1 × DPI (Parallel RGB Display) | ||
| 1 × PCM | ||
| 1 × PWM channel | ||
| Up to 3× GPCLK outputs | ||
| vertical expansion interface |
1 × PCIe 1 lane Host, Gen 2 (5Gbps) | |
| 1 × USB 2.0 port (high speed) | ||
| 26x GPIOs | ||
| POE | ||
| Power | Voltage | 5V DC |
| Current | 3A(Minimum) | |
| Temperature | Operating Temperature | 0 - 70°C(For the LCD Screen: 0 - 60°C) |

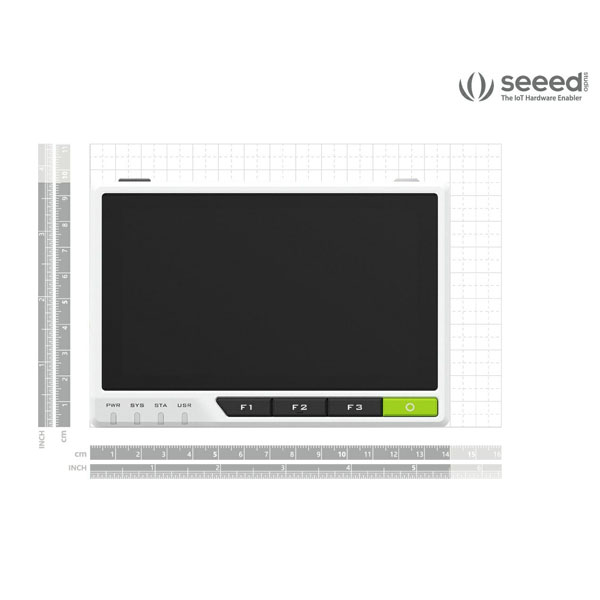

| Mechanical | Length | 140mm x 95mm x 21mm |
| Weight | 285g | |
| Certification | Certificates | CE, FCC, TELEC(211-210815) |
